Description
- Material: Composite Material
- Brand Name: Jea.Love
- Origin: Mainland China
- Recommend Age: 14 y
- Type: MOTORS
- Gender: Unisex
- Age Range: 14 Years & up
- Use: Vehicles & Remote Control Toys
- Place of Origin: Shanghai, China
- Brand Name: Maytech
- Model Number: MTO5065-170-HA-C

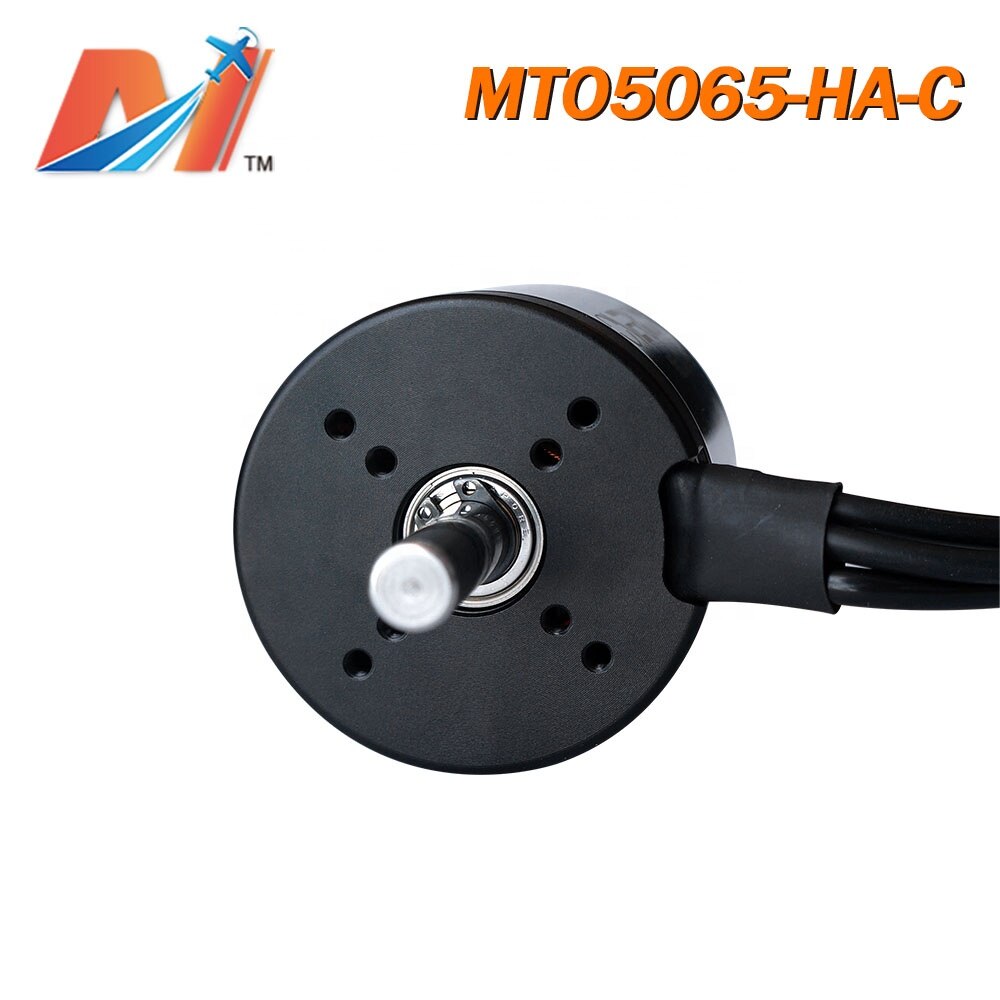

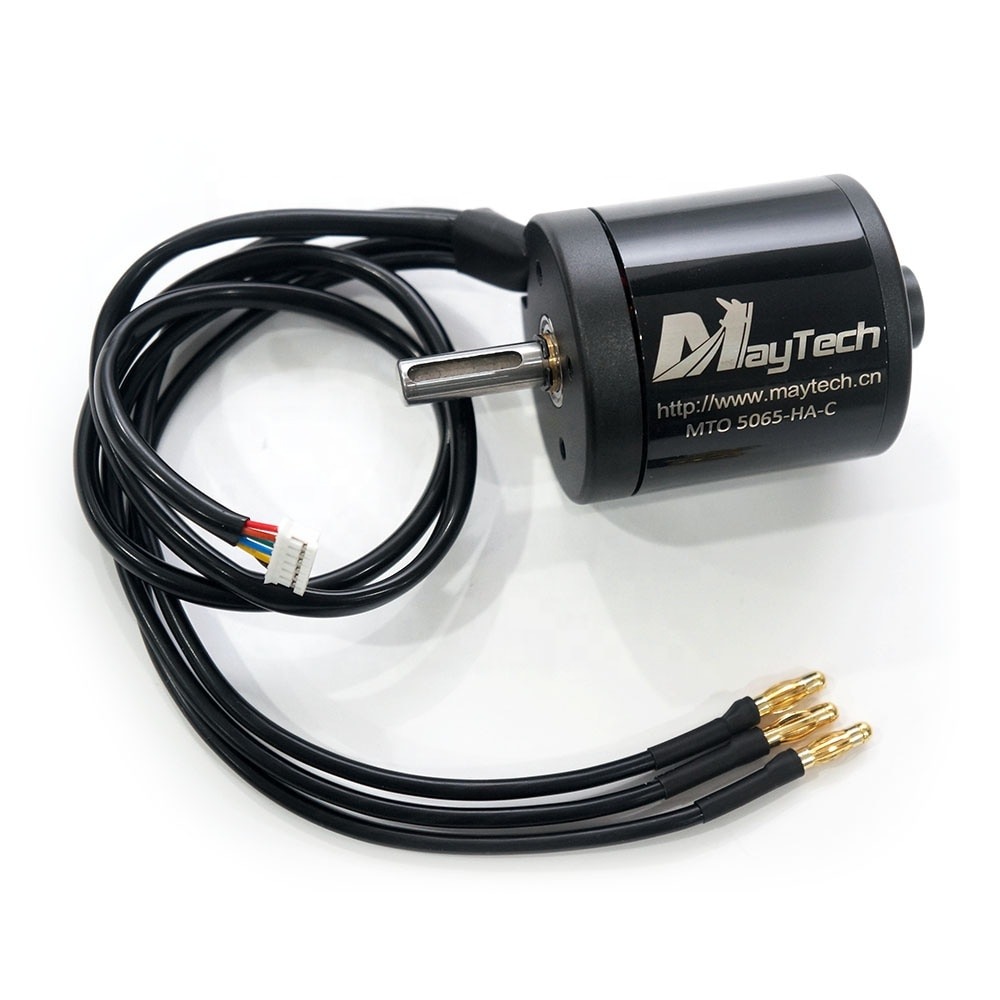

- Product name: Maytech dustproof 5065 longboard outrunner motor
- Brand: Maytech
- Application: For robot/electric skateboard / longboard / e-bike
- KV: 170

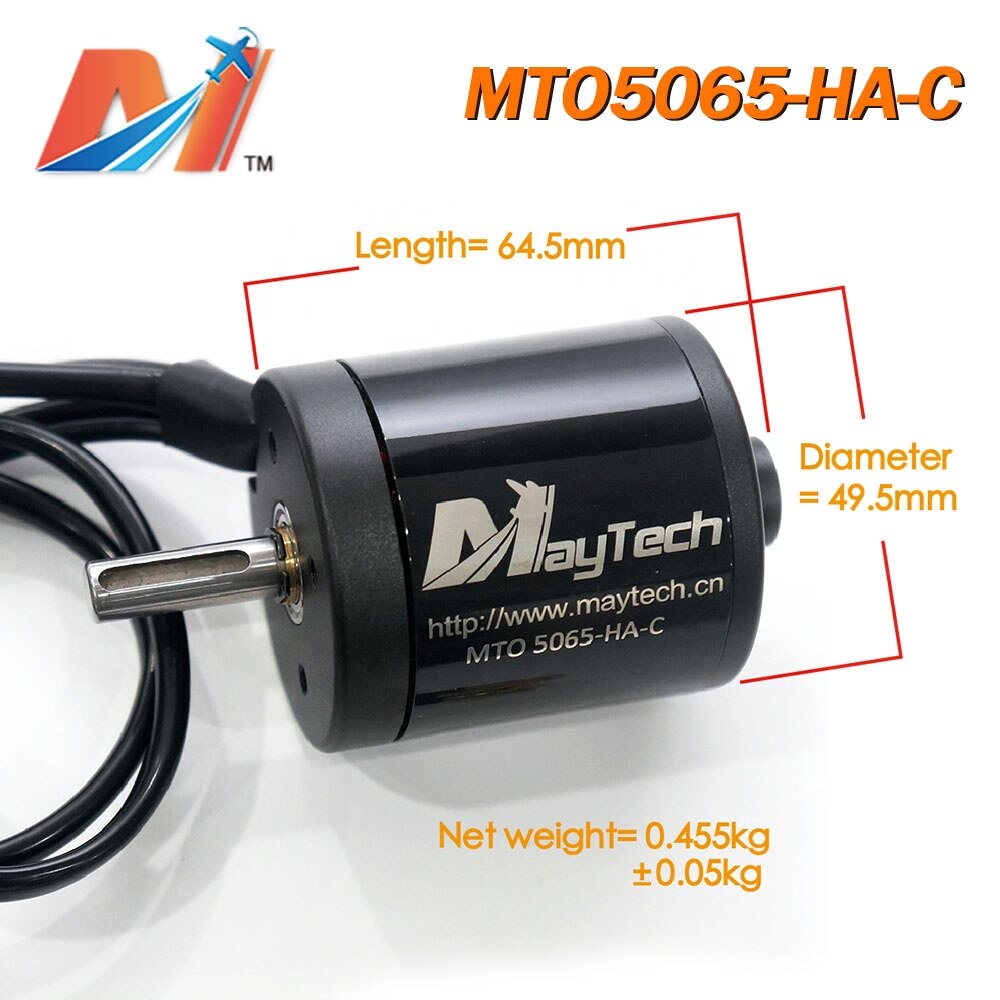

- Motor size: 50.0X65.0mm dustproof 5065 brushless motor

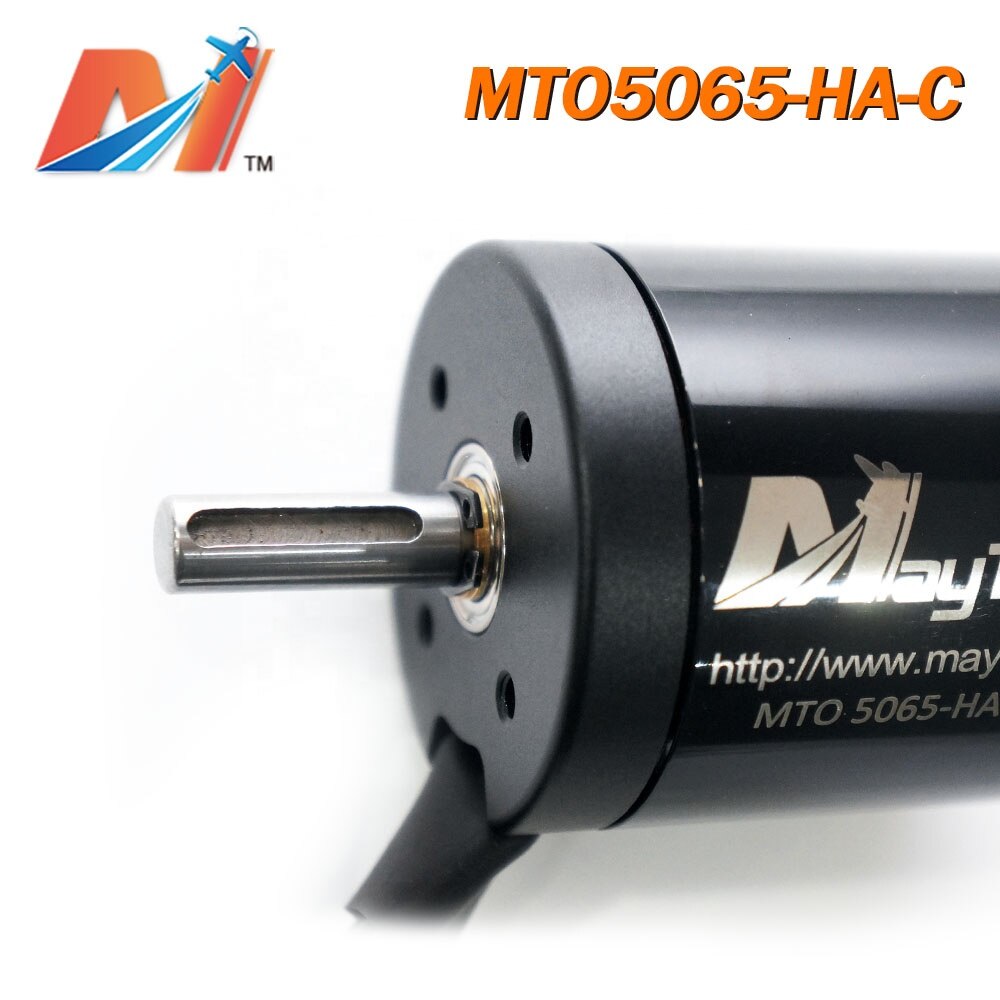

- Shaft: 8mm with 3mm keyway

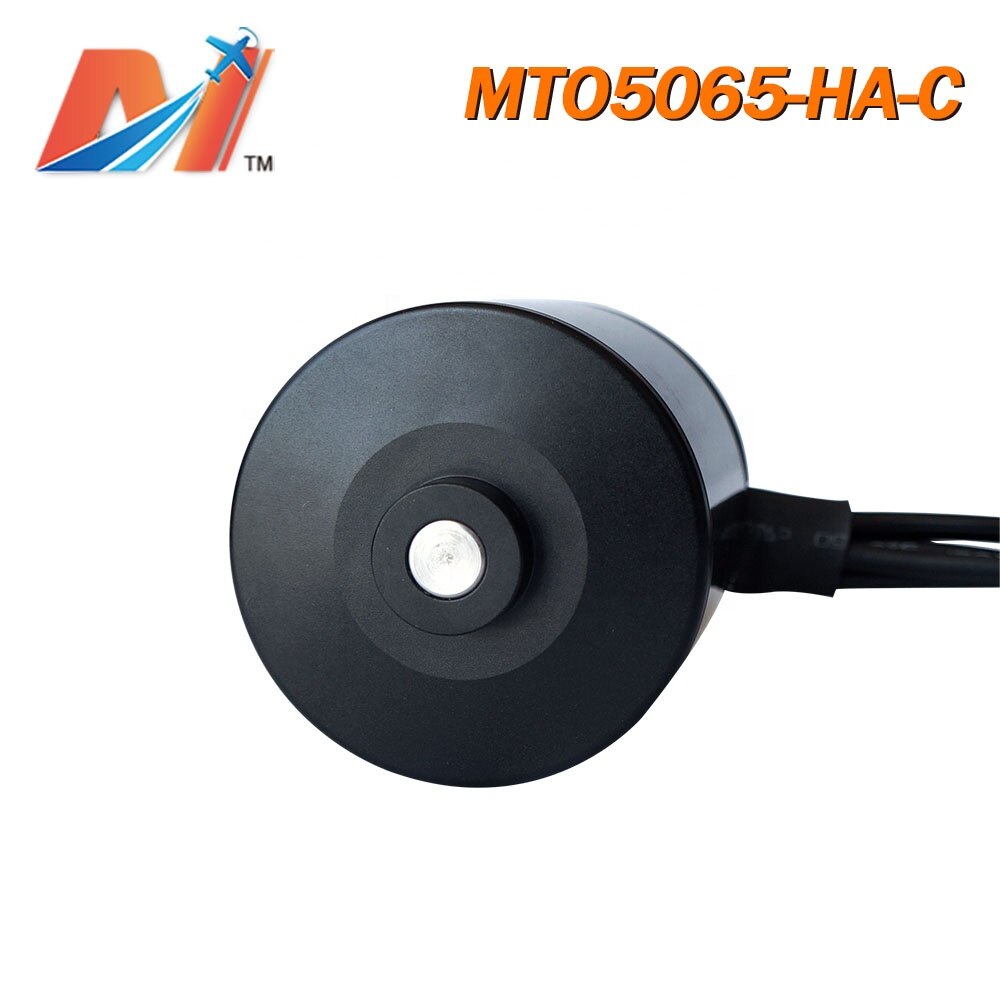

- Cover: Black closed cover
- Weight: 450g
- Company: Manufacture
- Certificate: CE ROHS
Related Products
Products Description

Maytech dustproof sealed 5065 longboard outrunner motor with hall sensor for robot combat rov delivery robot e skateboard

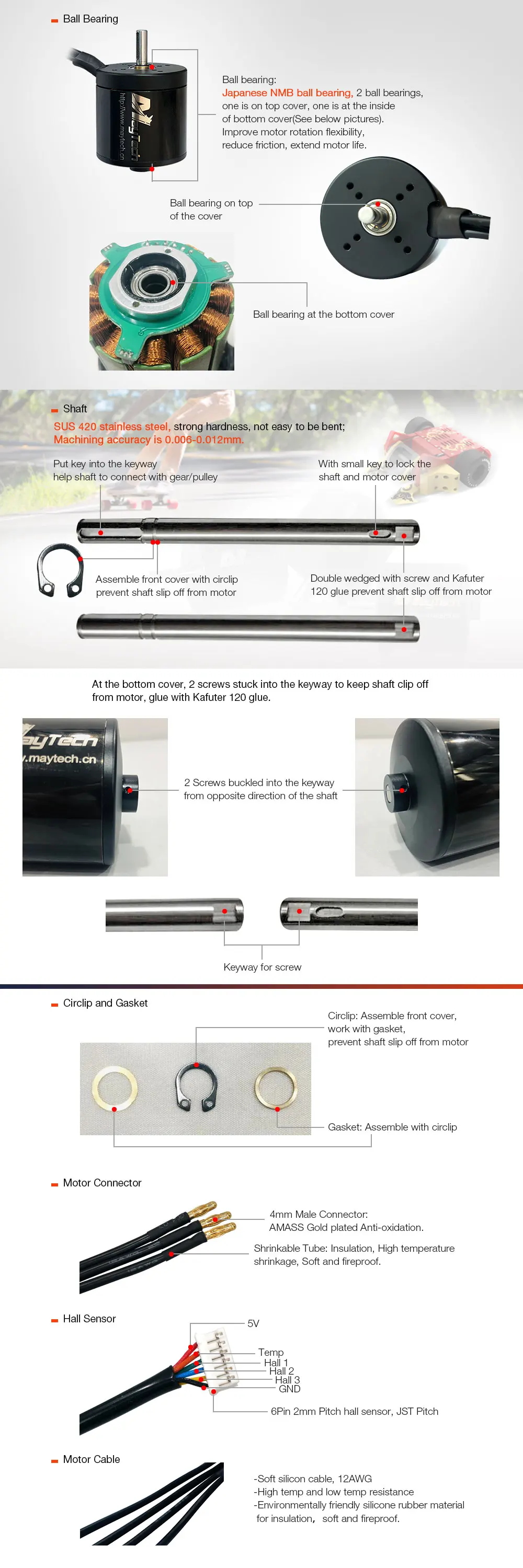

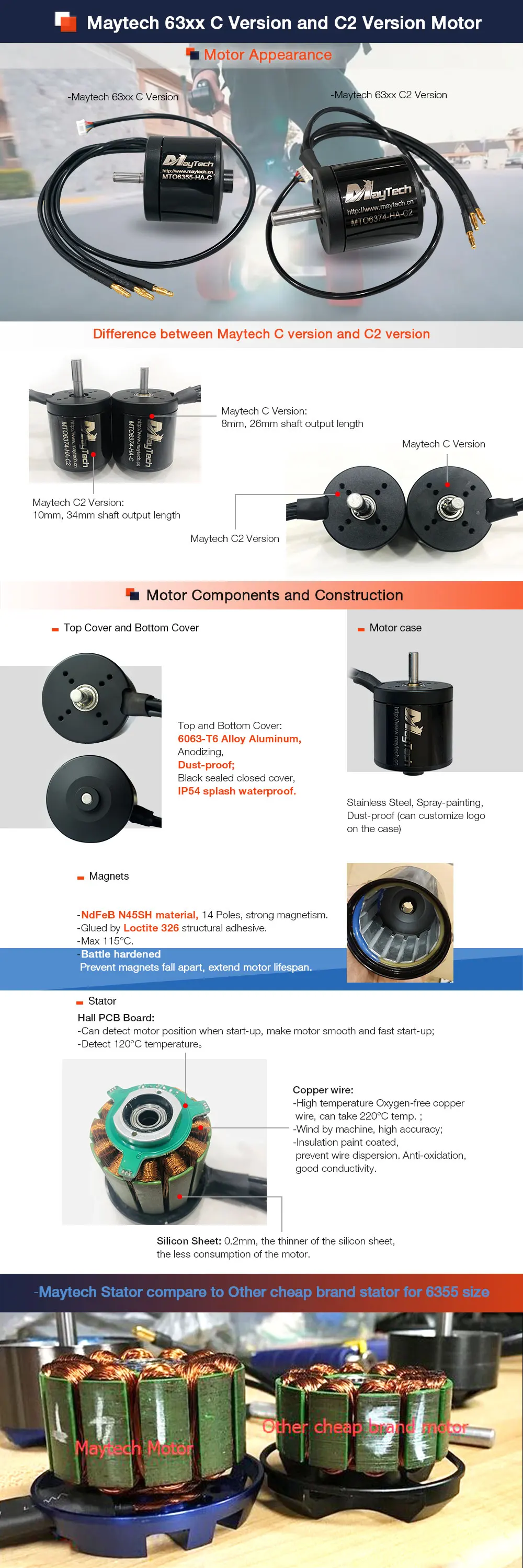

Features
The up and bottom covers are made of aluminium alloy, motor case is steel. Use high temperature and oxygen-free copper wire.
NMB Japanese bearings.
Magnets is 45h sintered ndfeb magnet.
Stator is stacked with silicon steel.
Stainless steel shaft.
4mm AMASS Male Connector.
12AWG motor cable.
The up and bottom covers are made of aluminium alloy, motor case is steel. Use high temperature and oxygen-free copper wire.
NMB Japanese bearings.
Magnets is 45h sintered ndfeb magnet.
Stator is stacked with silicon steel.
Stainless steel shaft.
4mm AMASS Male Connector.
12AWG motor cable.
Model No
|
MTO5065-170-HA-C
|
Max Power
|
1815W
|
KV
|
170
|
Internal Resistance
|
0.0361
|
Max Lipo Cell
|
2‐10s Lipo
|
Motor Weight
|
450g
|
Max Current
|
50A
|
Output Shaft Length
|
26mm
|
Rated Current
|
42.5A
|
Hall Sensor
|
Yes
|
Idle Current
|
1.2A
|
Max. Pull
|
6700g
|

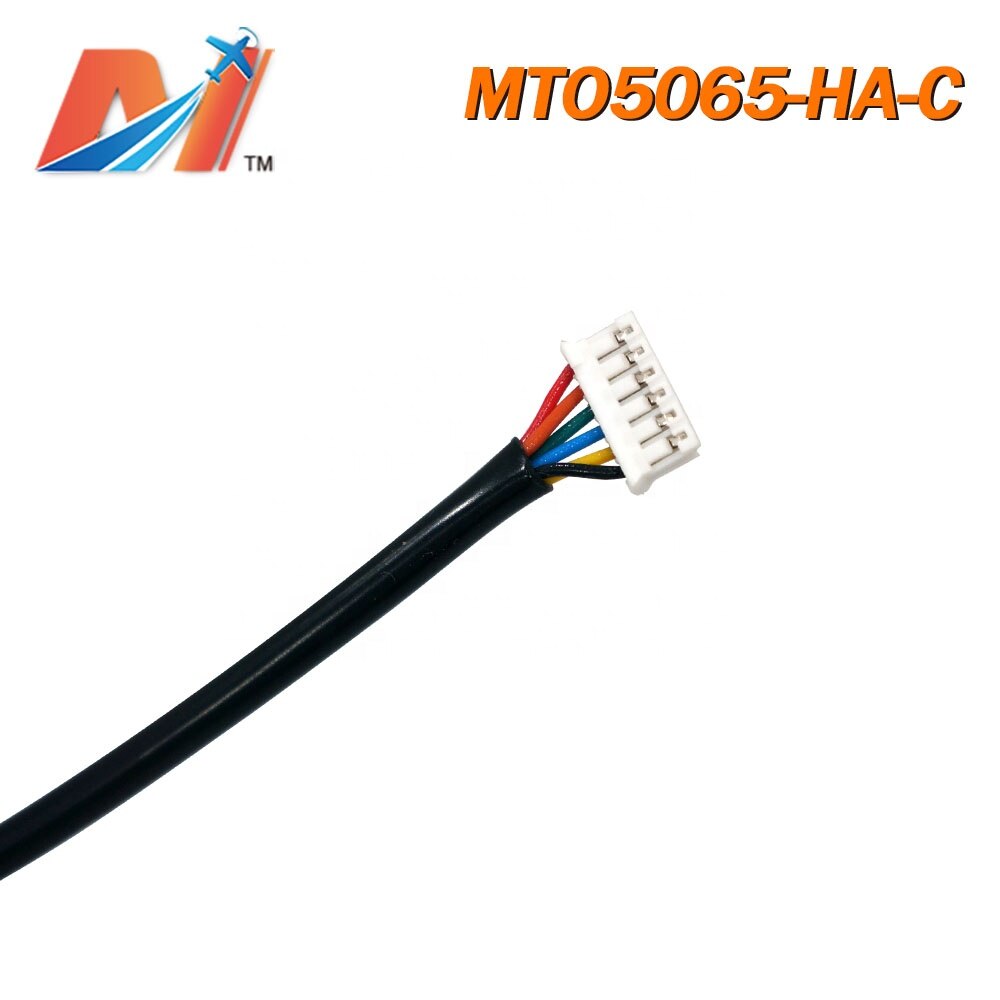

Sensor cable length
|
500mm with JST 6pin PH 2mm connector
|
Shaft
|
8mm with 3mm keyway
|
Motor cable length
|
240mm, excluding connector length
|
With
|
4mm golden male connector
|

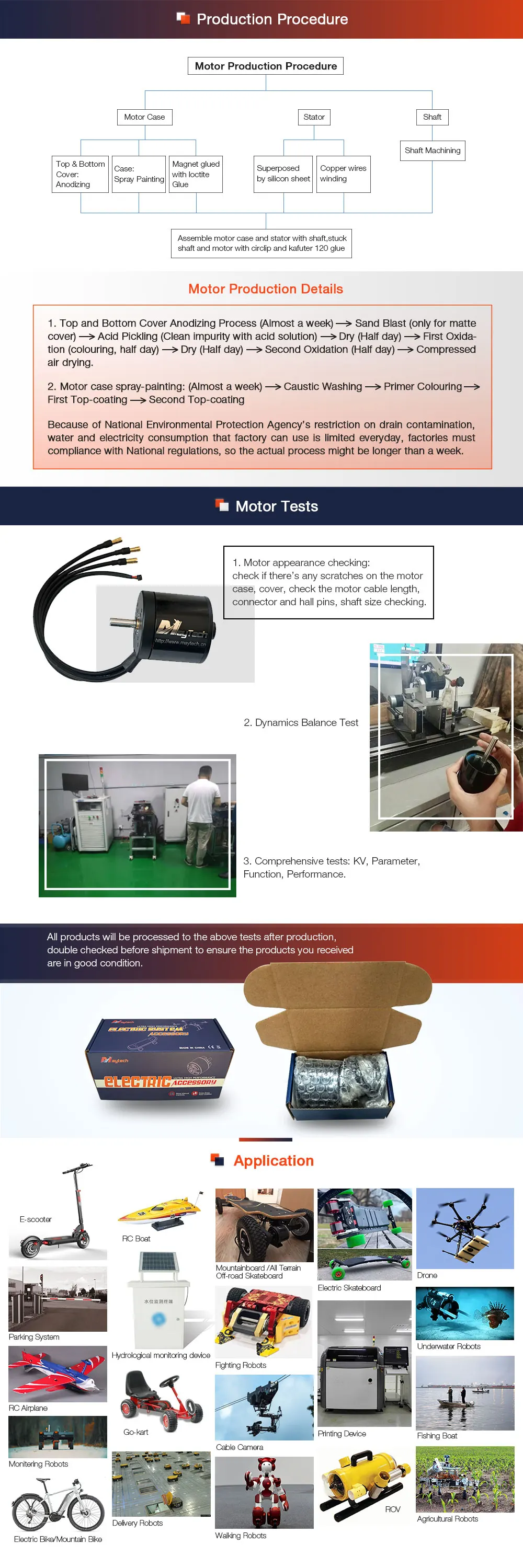

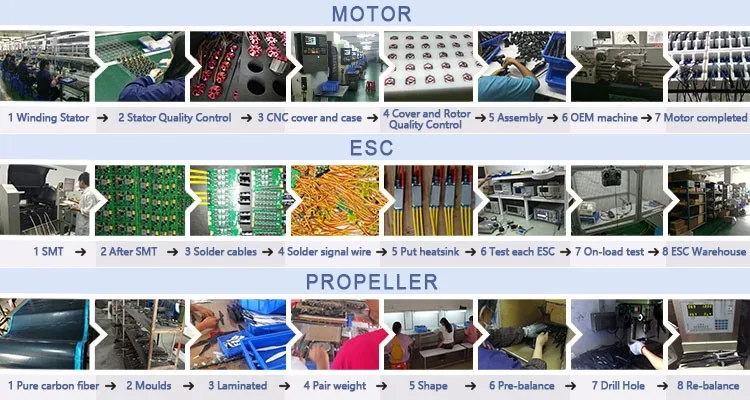

Production
