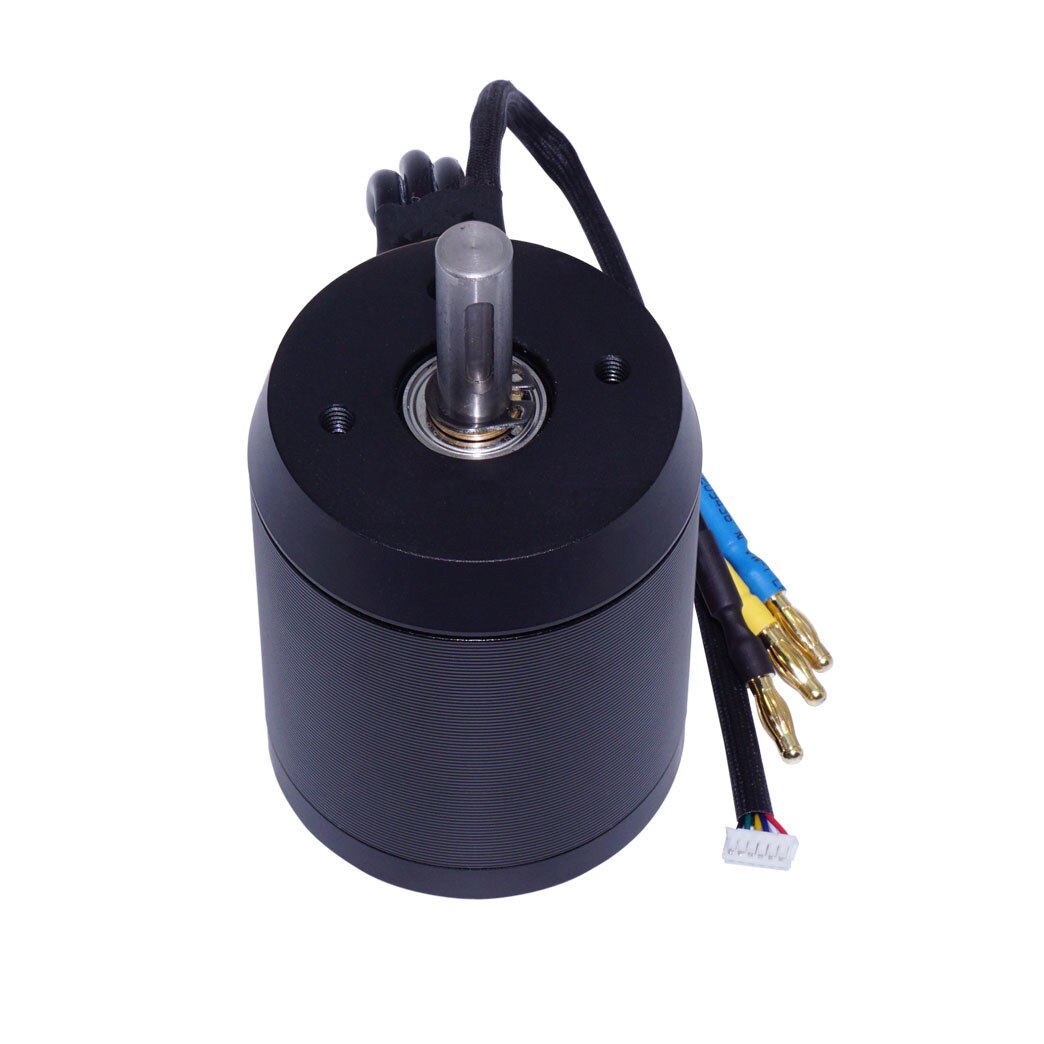

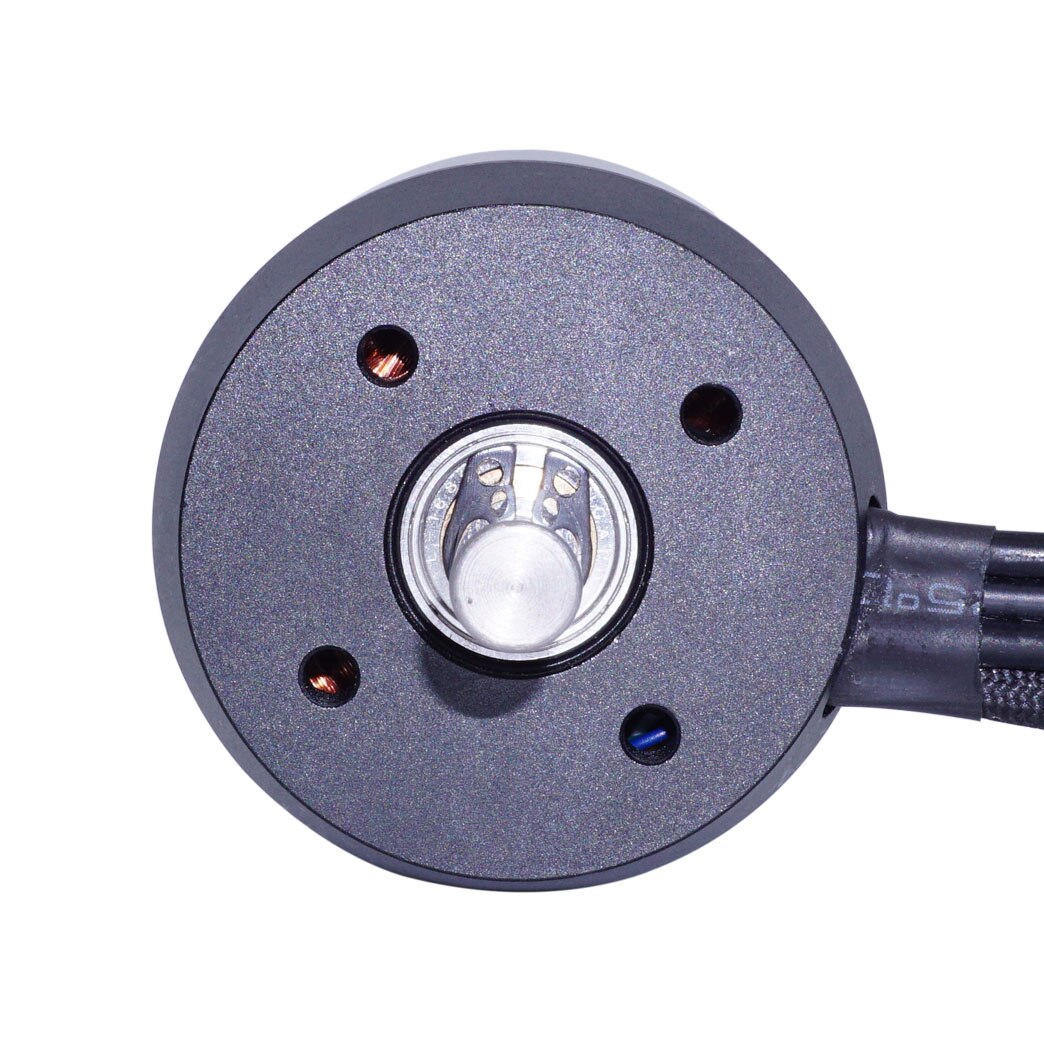

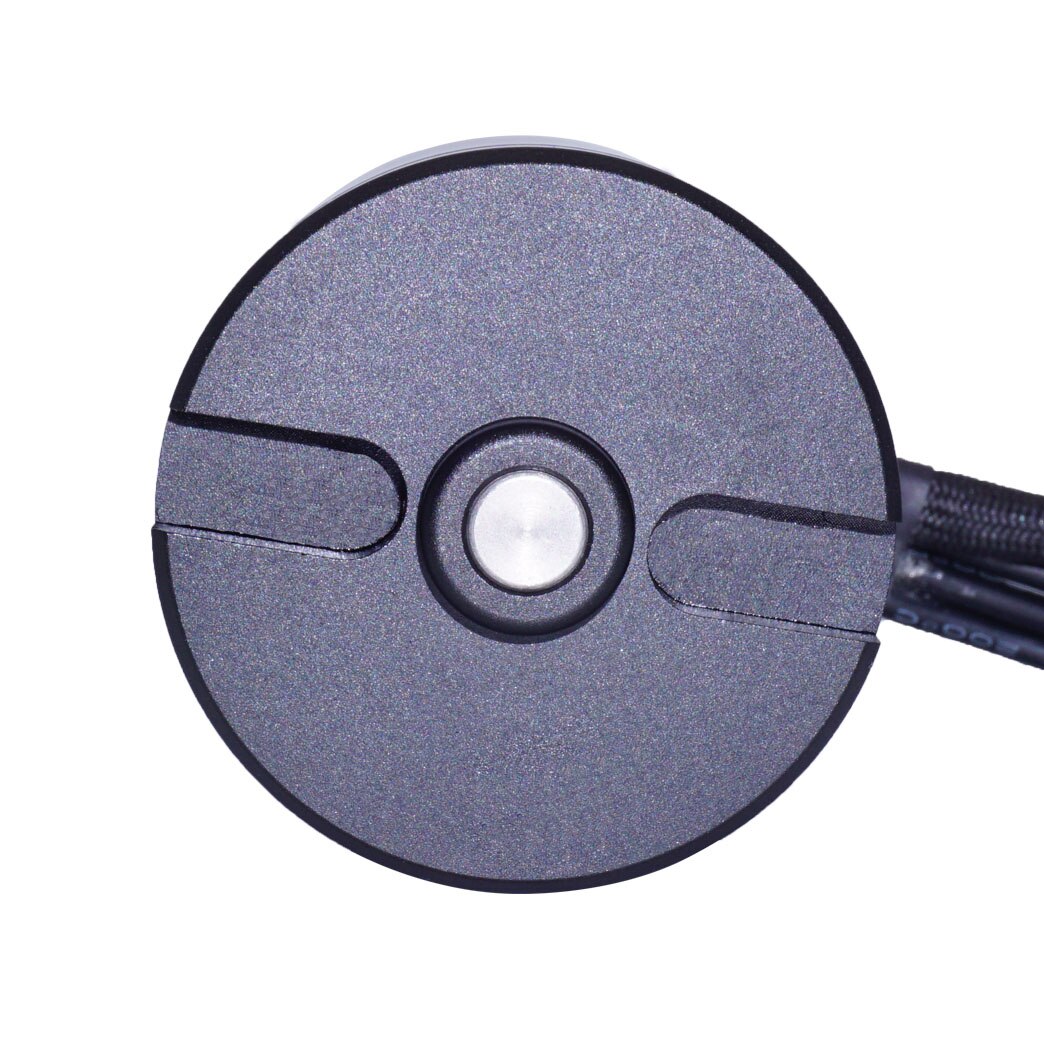

Flipsky 5065 Motors
Flipsky is a well-known brand in the electric skateboard community, and their 5065 motors are a popular option for DIY board builders. They have a Kv rating of 140 and a power rating of 2600 watts, and are priced at around $80 each.
- Type: Other
- Origin: Mainland China
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Flipsky
- Type: Skateboard Parts
- Material: Metal
- Model Number: BLDC Motor 5065
- Size: 50*65mm
- Max Power: 1550W
- Max Current: 80A
- No-load Current: 1.12A 10V
- Max Volts: 41.5V
- Max Torque: 4Nm
- Lipo: 3S-8S(11.1V-29.6V)
- Motor Resistance: 64mΩ
- Weight: 0.99lb/0.45kg
- Shaft Diameter: 8mm

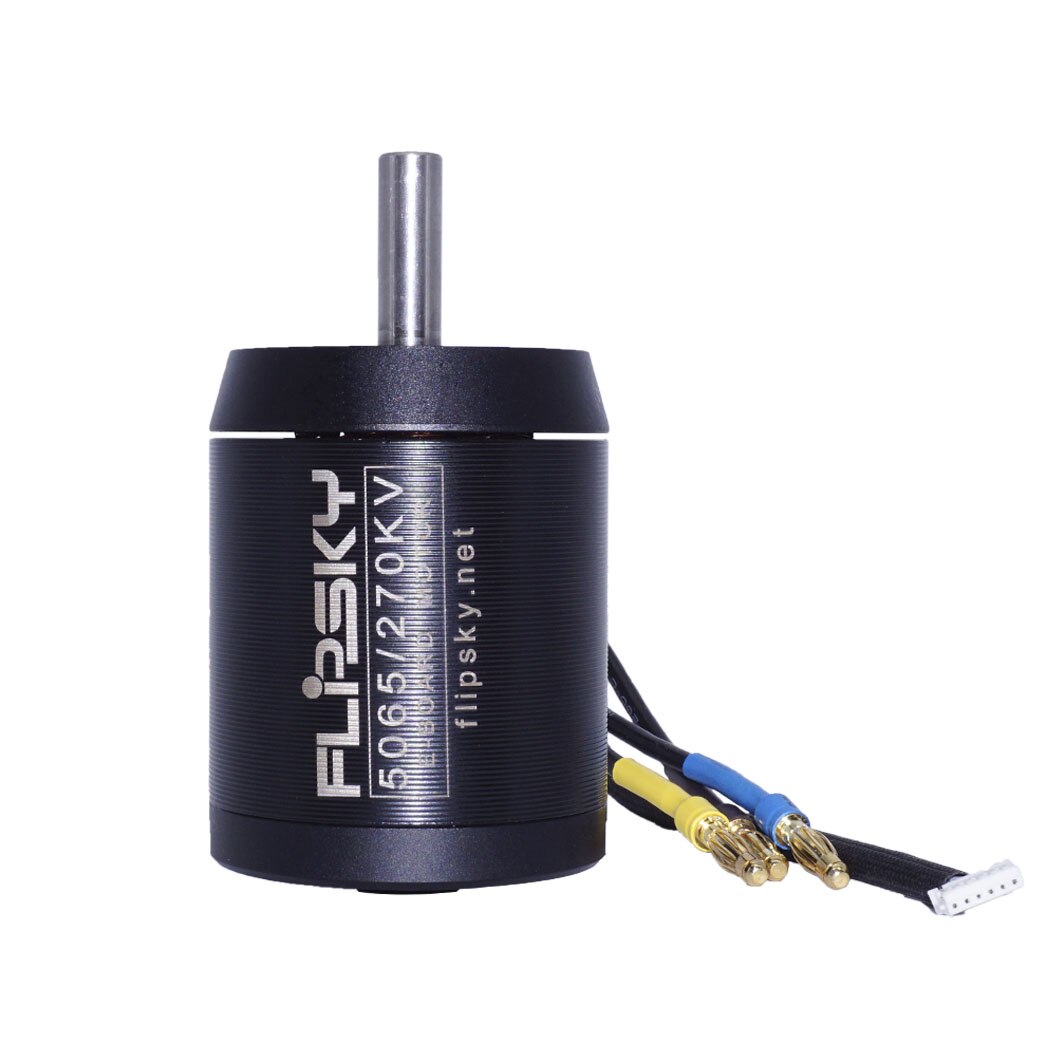

- Product Name: Flipsky 270kv 8s 1550w 5065 bldc motor for diy electric skateboard
Flipsky 270kv 8s 1550w 5065 bldc motor for diy electric skateboard ebike
| Max Power | 1550 Watts |
| Max Current | 34 Amps |
| Max Volts | 12S |
| Max Torque | 4Nm |
| Motor Resistance | 64mΩ |
| Recommend ESC | VESC4&VESC6(3-12S ) |
| Weight | 640g |

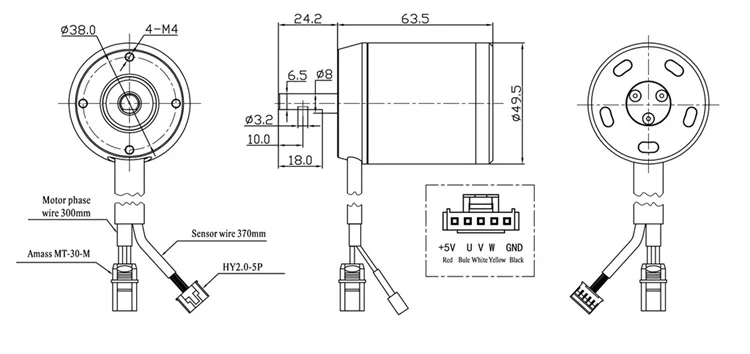

| The motor length | 65mm |
| Shaft | Diameter 8mm/10mm, 30mm length, 3x3x20mm keyway slot |
| Motor Wire | 12AWG wire with 4.0mm Gold Bullet Connector |
| Wire configuration | Blue = A Black = B Yellow = C |
| Stator | 0.2mm thickness lamination japan steel |
| Magnet | N42SH high temp curve magnet |
| The number of pole | 14 |

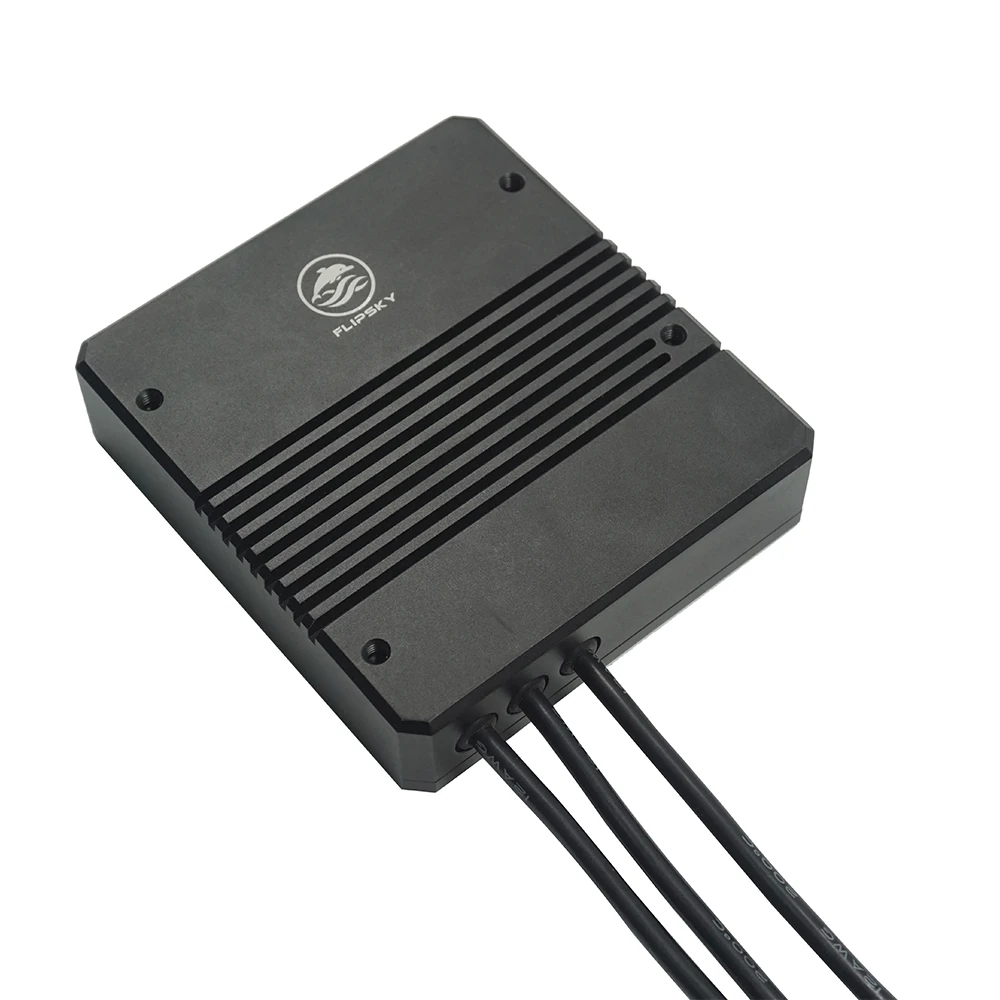

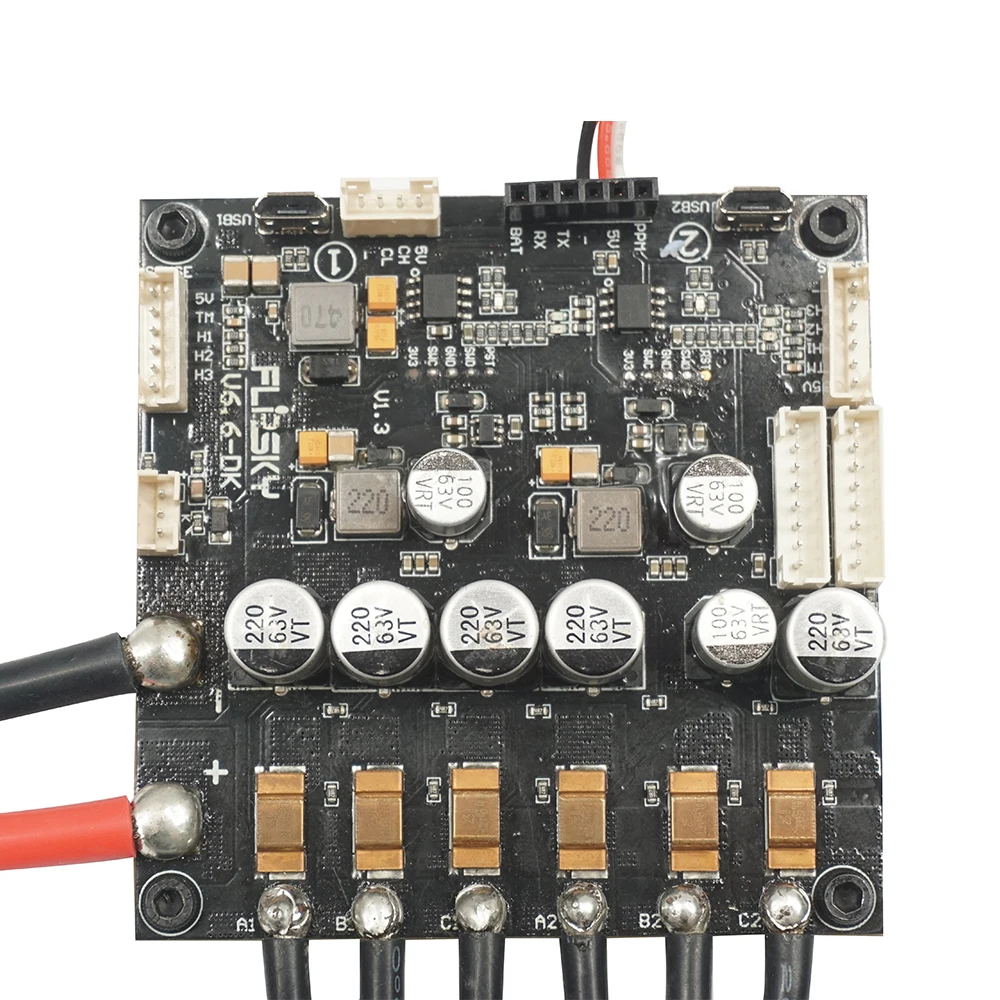

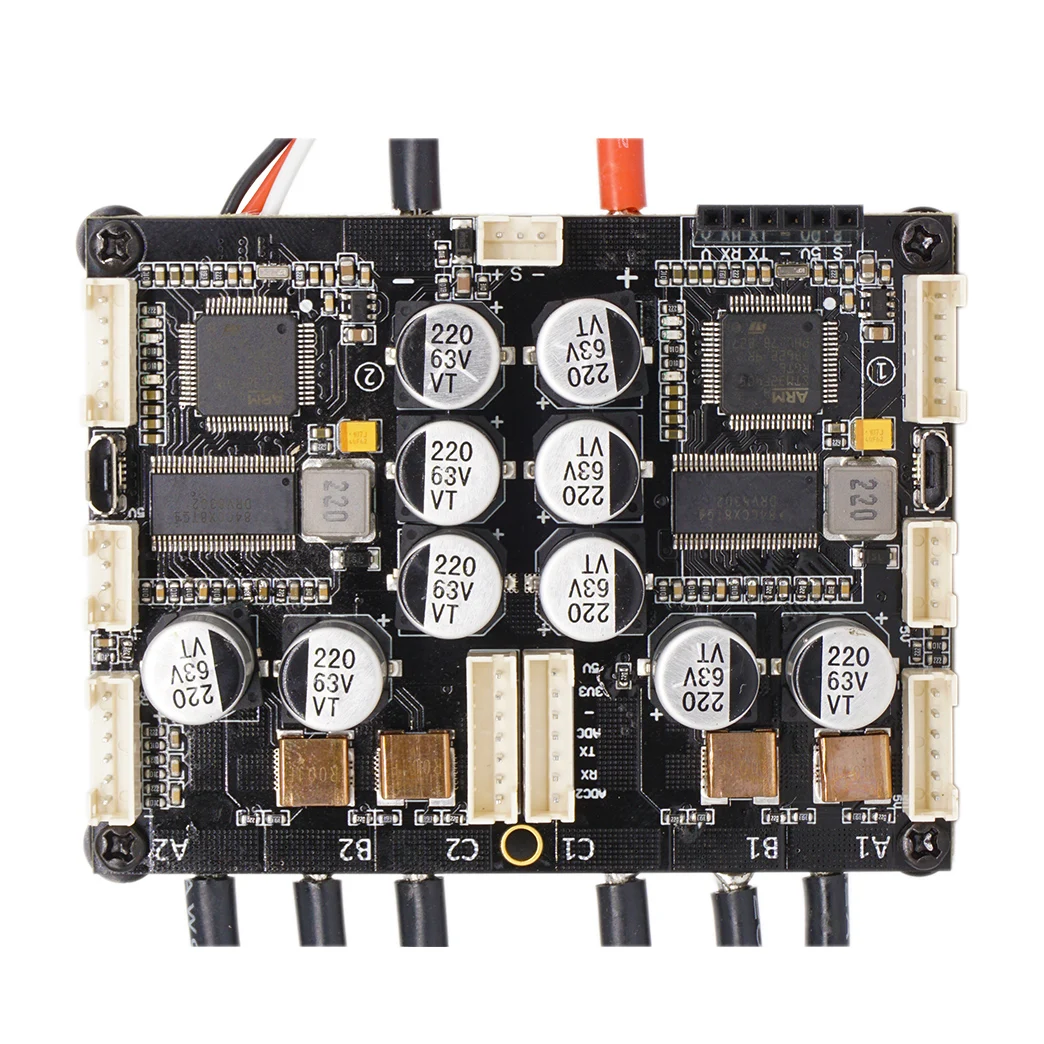

Dual Mini VESC 6.6 Dual VESC 4.20 Plus Dual VESC 6.6 Plus

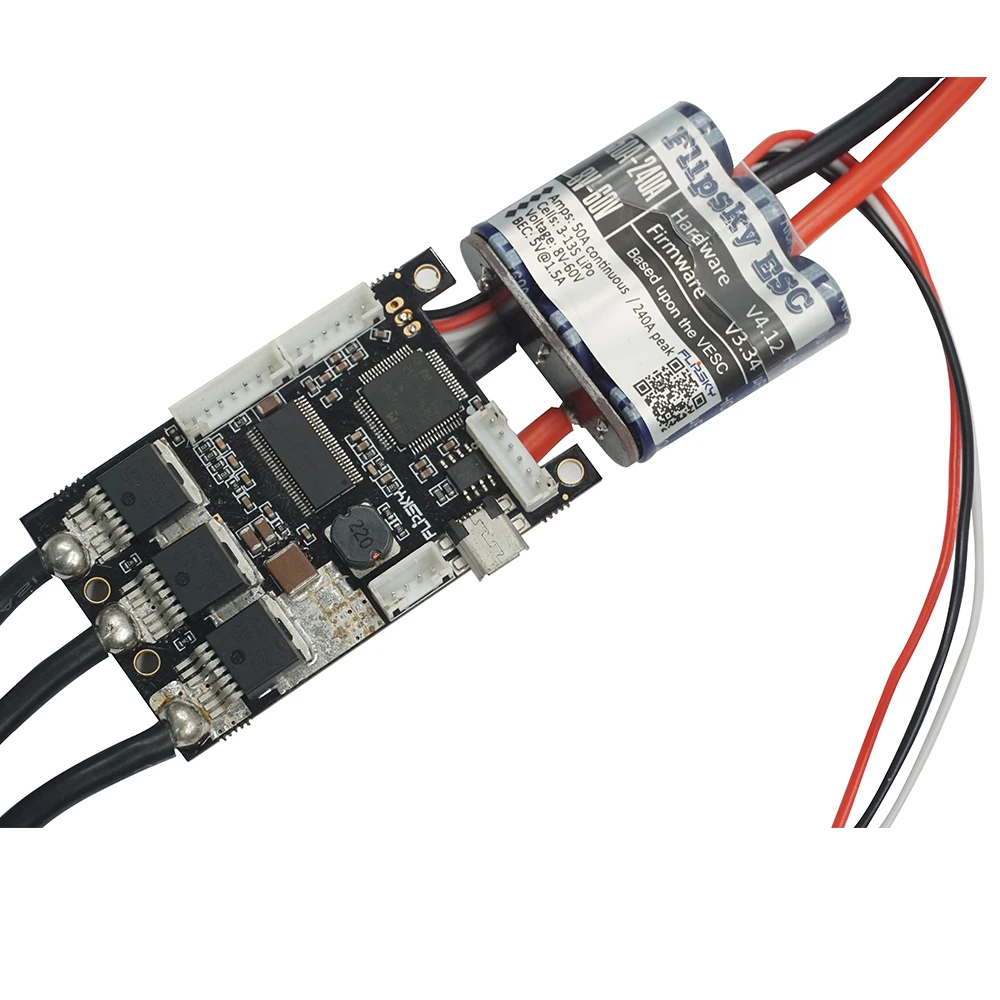

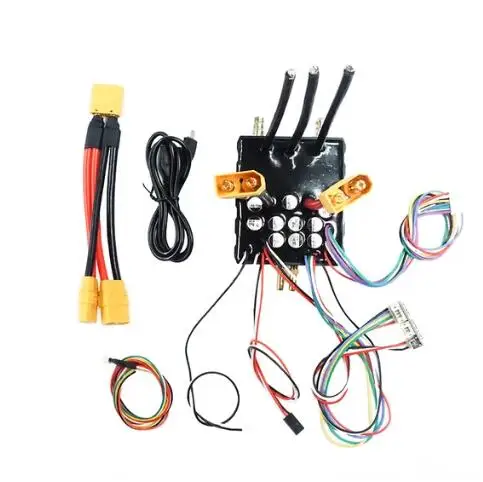

50A VESC 4.12 200A 60V VESC 6 VESC 6 with Case

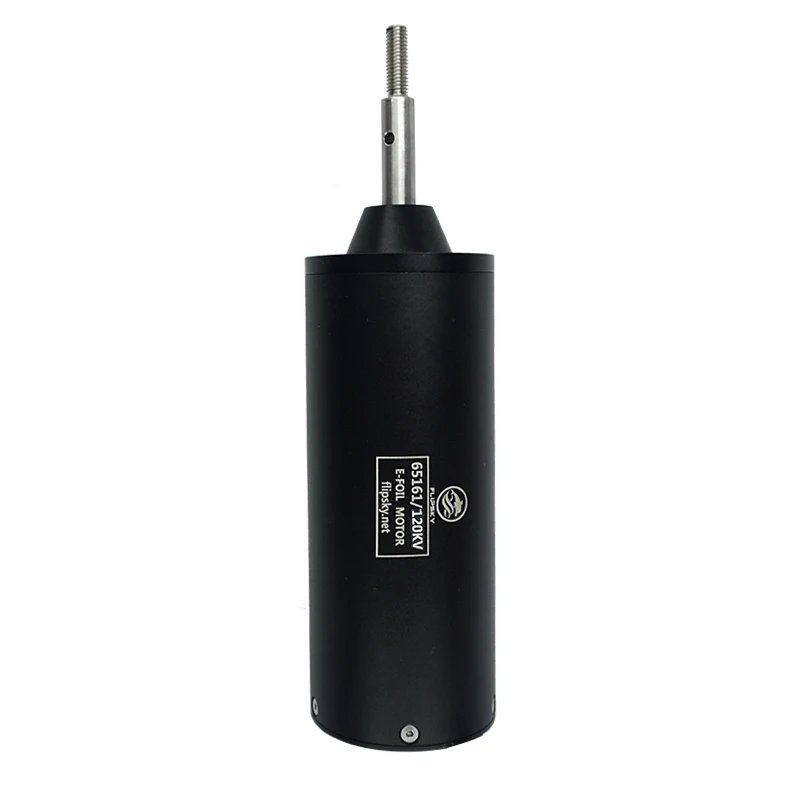

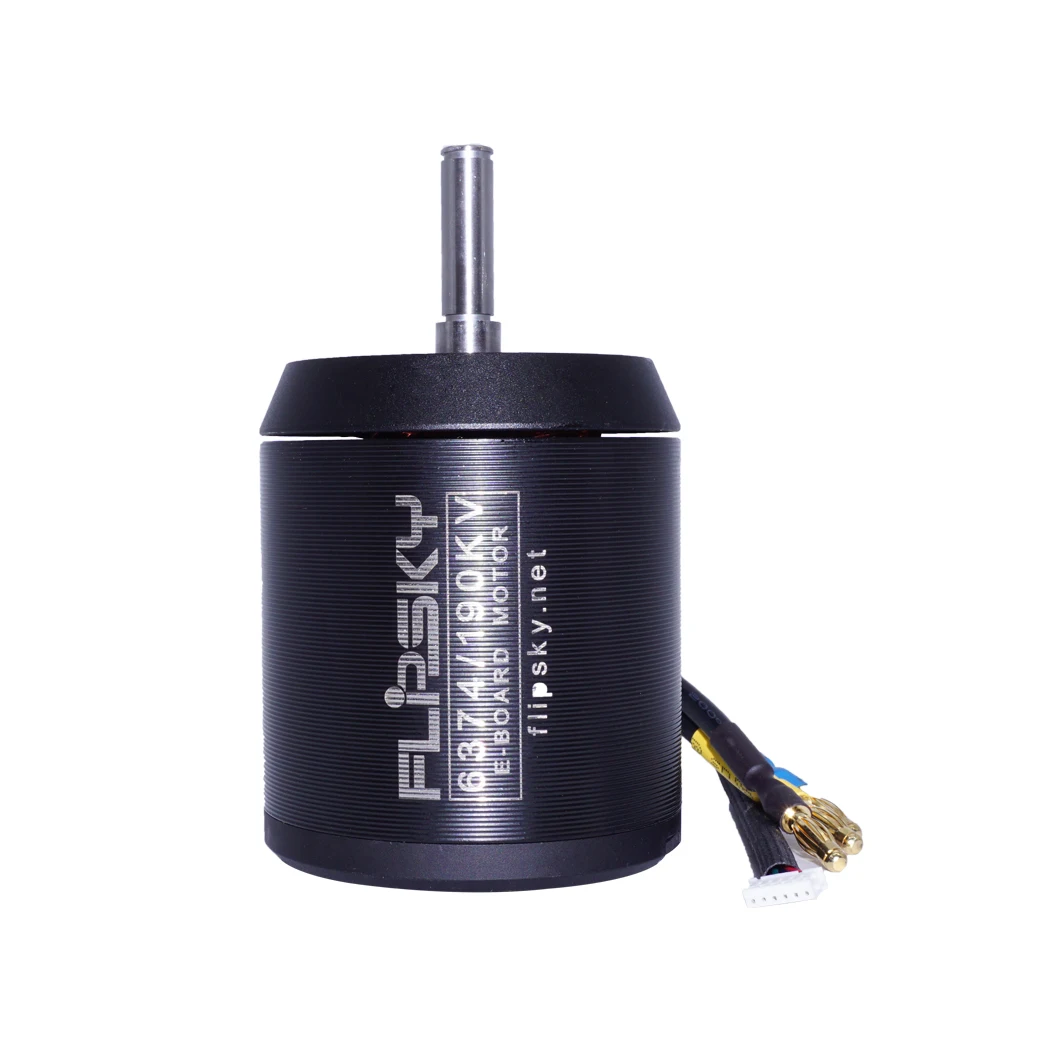

Motor 6374 190KV 3250W Motor 65161 195KV 6000W

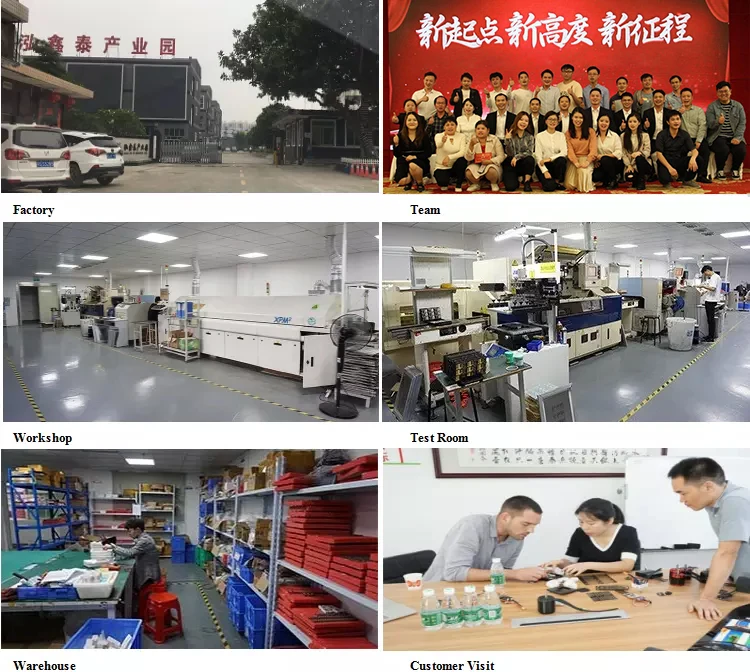

FLIPSKY Technology Co., Ltd was set up in 2017. It grows up quickly and powerfully. We have our own design team, manufacture team including the workshop, marketing and sales department. FLIPSKY mainly focus on second innovation research and development basing on the latest international electronic intelligence technology, manufactures and sells electronic intelligent control products and peripheral accessories.
The vision of FLIPSKY is to maximize the use of latest international technology and to change life by it. FLIPSKY’s products can be applied in electric skateboards, electric vehicles, scooters, car models, ship models, robots and industrial equipment and other industries.
